The Main Engine is the primary power source on offshore support vessels such as AHTS Triton Arjuna (Anchor Handling Tug Supply). These vessels operate under demanding conditions, making engine reliability critical for safe and efficient operations. To maintain optimal performance, periodic maintenance such as Top Overhaul is required, particularly on the Starboard Side Main Engine.
This article explains the top overhaul process of the main engine starboard on AHTS Triton Arjuna, including work procedures, technical scope, and key operational benefits.
A top overhaul is a medium-level maintenance activity focused on the upper section of the engine (top end), without dismantling the entire engine. It typically includes:
- Cylinder head
- Inlet and exhaust valves
- Fuel injectors
- Piston and piston rings (inspection or minor replacement)
The purpose of a top overhaul is to restore combustion efficiency and engine performance without performing a full general overhaul.
Top overhaul on the starboard side of AHTS Triton Arjuna
- Decreased engine performance
- Increased exhaust gas temperature
- Higher fuel consumption
- Leakage in cylinder head or valve system
- Carbon deposit buildup in combustion chamber
- Scheduled maintenance based on running hours
Timely maintenance helps prevent major engine damage and ensures continuous vessel operation.
Top Overhaul Process of Main Engine Starboard
1. Work Preparation
- Coordination with Chief Engineer and vessel crew
- Conducting toolbox meetings
- Implementation of Lock-Out Tag-Out (LOTO) procedures
- Preparation of tools, lifting equipment, and spare parts
- Cooling down the engine to a safe working temperature

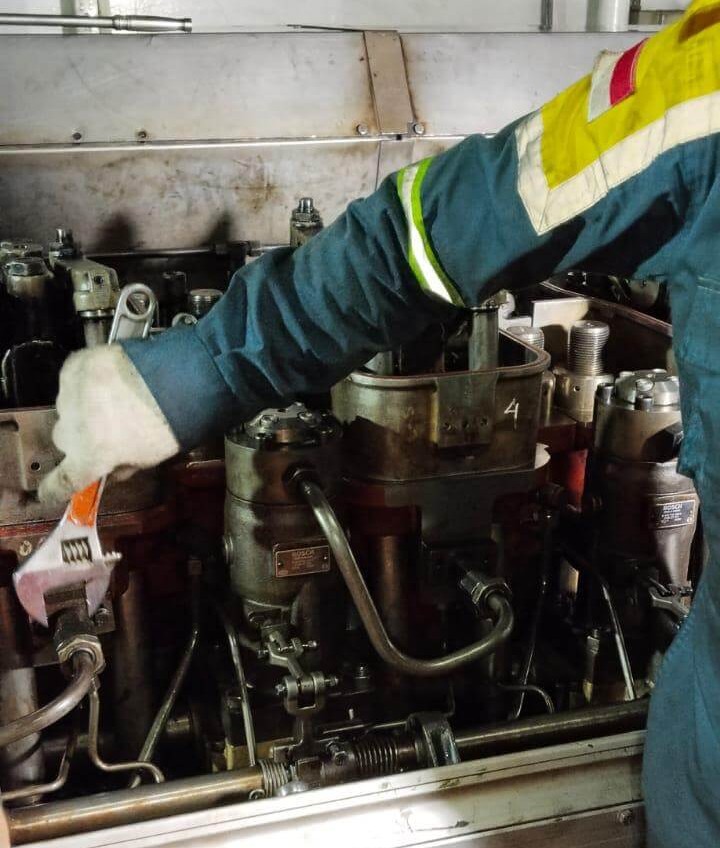

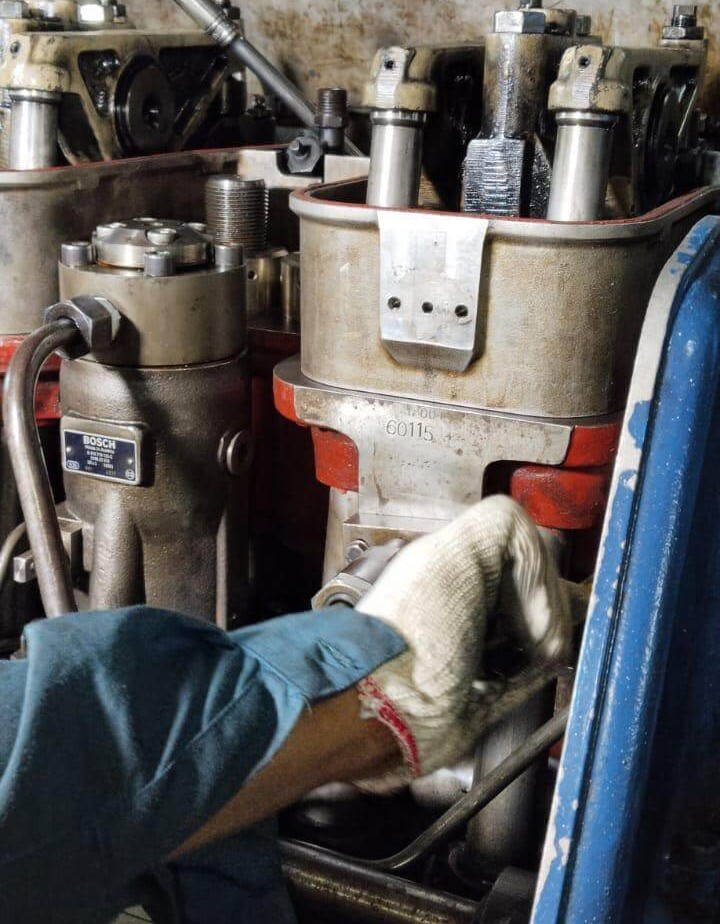

2. Component Dismantling
- Opening cylinder head cover
- Removing fuel injectors and fuel pipes
- Dismantling rocker arms and valve mechanisms
- Lifting and removing cylinder head
- Initial inspection of combustion chamber and piston

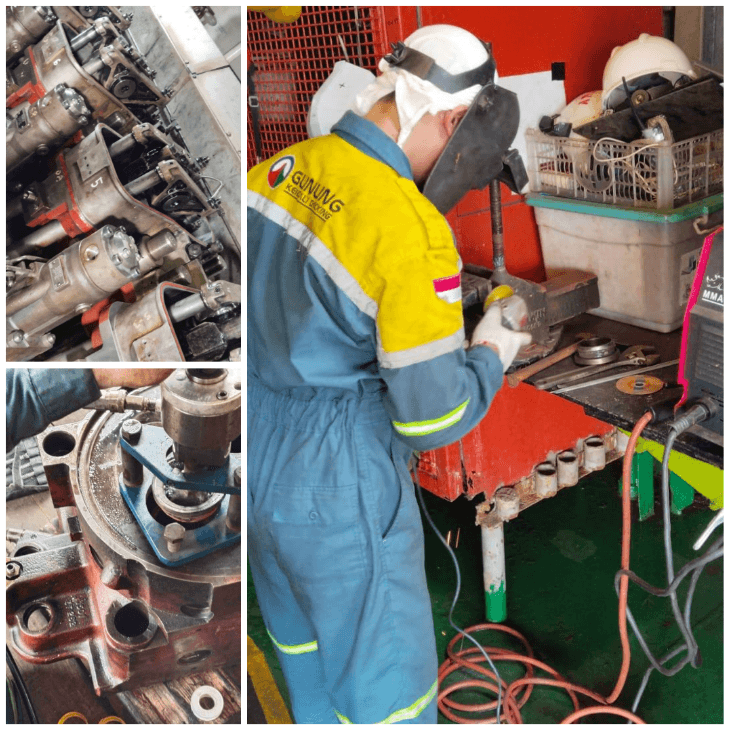

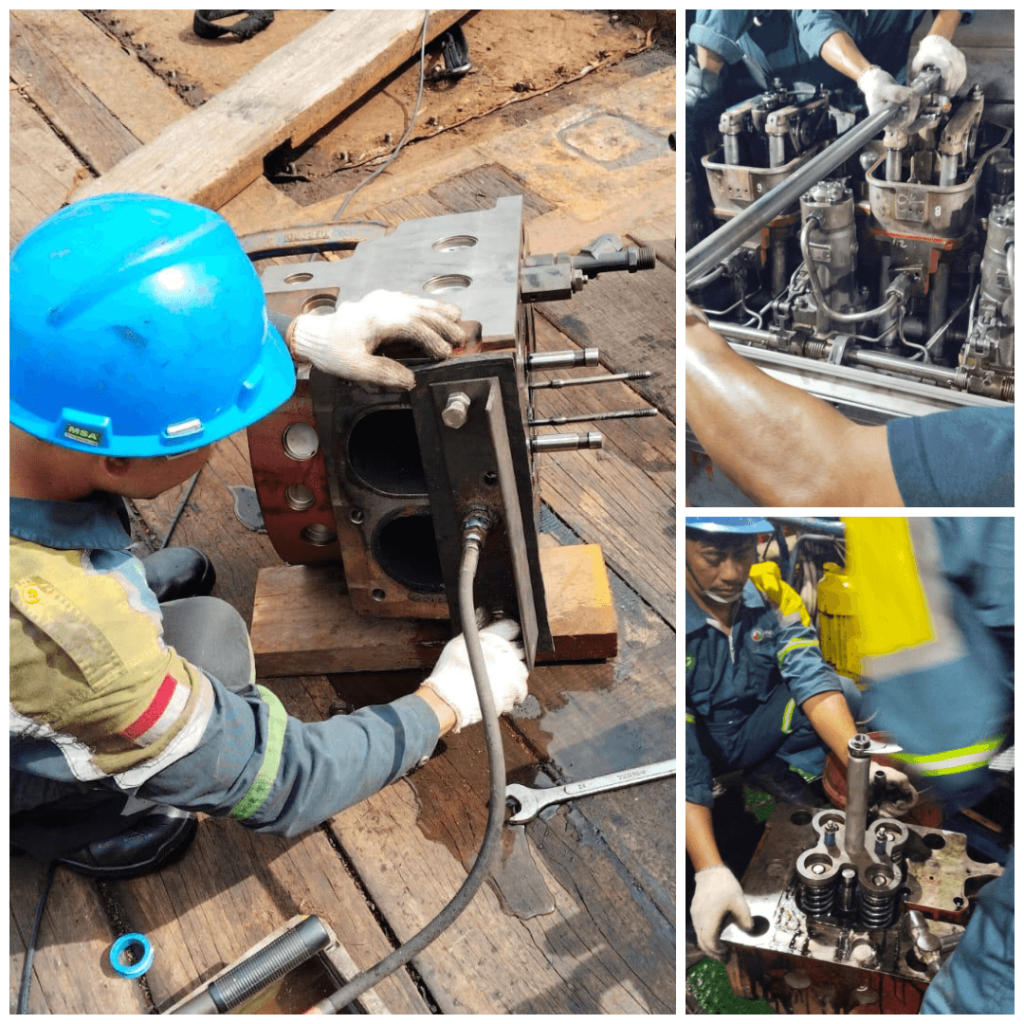

3. Inspection and Cleaning
Cylinder Head
- Cleaning carbon deposits
- Inspecting valve seats and valve guides
- Performing leak tests
Valve System
- Valve grinding if required
- Replacement of worn valves
- Inspection of valve springs and retainers
Fuel Injector
- Cleaning and testing injector (spray pattern and pressure)
- Replacement of nozzle if necessary
Piston and Rings
- Inspection of piston crown condition
- Measurement of ring clearance and end gap
- Removal of carbon deposits
4. Replacement of Components
Worn or damaged components are replaced, including:
- Cylinder head gasket
- O-rings and seals
- Valves or valve seats
- Injector nozzles
- Piston rings (if required)
5. Reassembly (Assembly)
- Installation of cylinder head with proper torque specifications
- Reinstallation of valve mechanism and rocker arms
- Installation of fuel injectors and fuel system components
- Adjustment of valve clearance
- Fuel injection timing setting
6. Testing and Commissioning
- Turning gear test to ensure free rotation
- Engine start-up
- Monitoring oil pressure and temperature
- Checking exhaust gas temperature
- Gradual load testing to verify performance
Benefits of Top Overhaul Main Engine Starboard
Performing a top overhaul on AHTS Triton Arjuna provides several benefits:
- Improved combustion efficiency
- Reduced fuel consumption
- Lower exhaust gas temperature
- Enhanced engine performance
- Prevention of major engine failures
- Extended engine service life
- Increased operational reliability
Conclusion
The top overhaul of the main engine starboard on AHTS Triton Arjuna is a critical maintenance activity to ensure optimal engine performance and operational safety. Through proper dismantling, inspection, cleaning, component replacement, and testing, the engine can return to peak condition.
This maintenance procedure is highly recommended as part of a preventive maintenance program to support safe and efficient offshore operations.
