The Controllable Pitch Propeller (CPP) system is a critical propulsion component on ferry vessels such as KMP. SALVATORE, allowing precise adjustment of propeller blade angles to optimize maneuverability and efficiency. A key component within this system is the OD Box (Oil Distribution Box), which controls the distribution of hydraulic oil to the propeller hub.
Over time, continuous operation can cause wear, leakage, or performance issues in the OD Box. Therefore, reconditioning the OD Box CPP (S) is essential to restore its functionality and ensure reliable propulsion system performance.
What Is an OD Box in a CPP System?
The Oil Distribution Box (OD Box) is responsible for directing hydraulic oil from the control system into the CPP hub, enabling adjustment of blade pitch.
Its main functions include:
- Controlling hydraulic oil flow to the propeller blades
- Maintaining stable system pressure
- Ensuring accurate pitch adjustment
- Supporting fast response during vessel maneuvering
Failure of the OD Box can significantly affect propulsion efficiency and vessel safety.
Reconditioning is required due to several operational issues, including:
- Hydraulic oil leakage
- Loss of system pressure
- Unstable propeller pitch response
- Wear on shaft, sleeve, or sealing components
- Oil contamination within the system
- Damage identified during inspection
Timely reconditioning helps prevent propulsion failure and costly downtime.
Reconditioning Process of OD Box CPP (S) on KMP. SALVATORE
1. Work Preparation
- Coordination with Chief Engineer and vessel crew
- Implementation of Lock-Out Tag-Out (LOTO) procedures
- Draining hydraulic oil from the CPP system
- Preparation of tools, measuring instruments, and spare parts

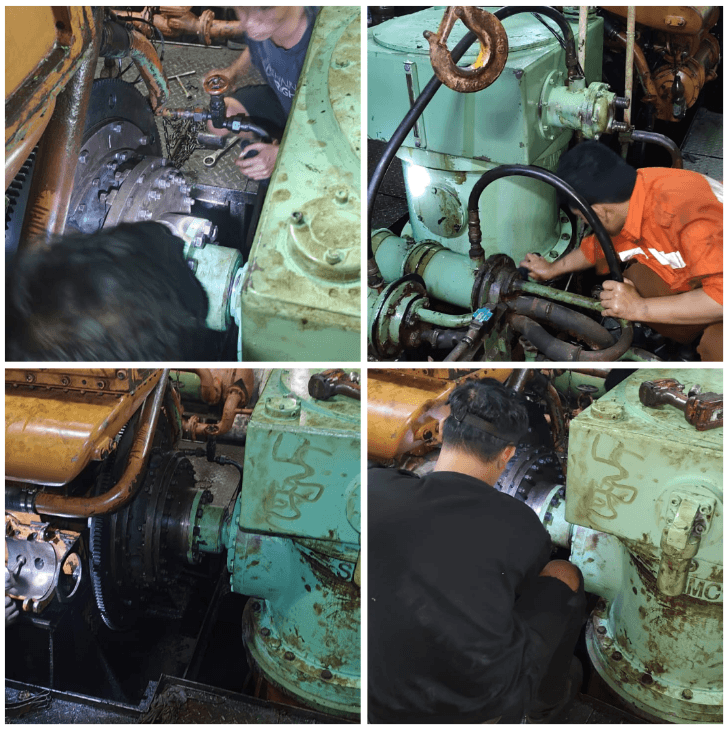

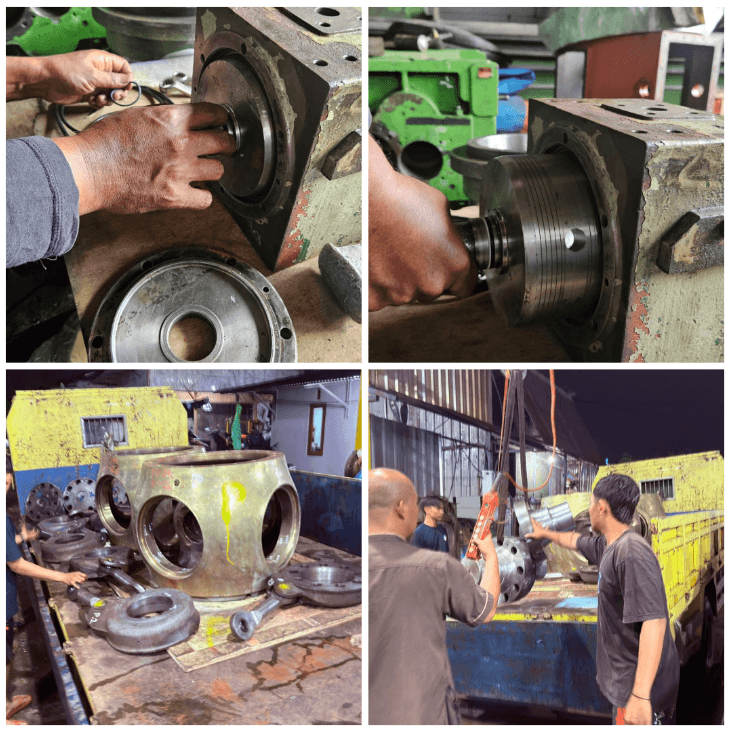

2. Dismantling of OD Box
- Removal of OD Box from the CPP system
- Disassembly of internal components such as shaft, sleeve, and seals
- Cleaning of all parts from oil and contaminants
- Documentation of initial component condition

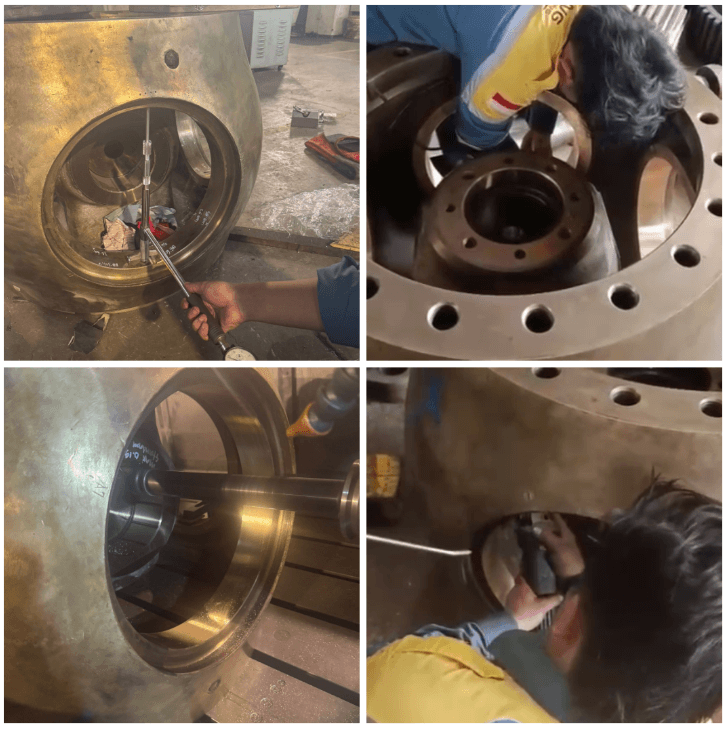

3. Inspection and Measurement
- Inspection of shaft and sleeve wear
- Dimensional measurement and tolerance checking
- Inspection of seal housing and grooves
- Detection of cracks or deformation

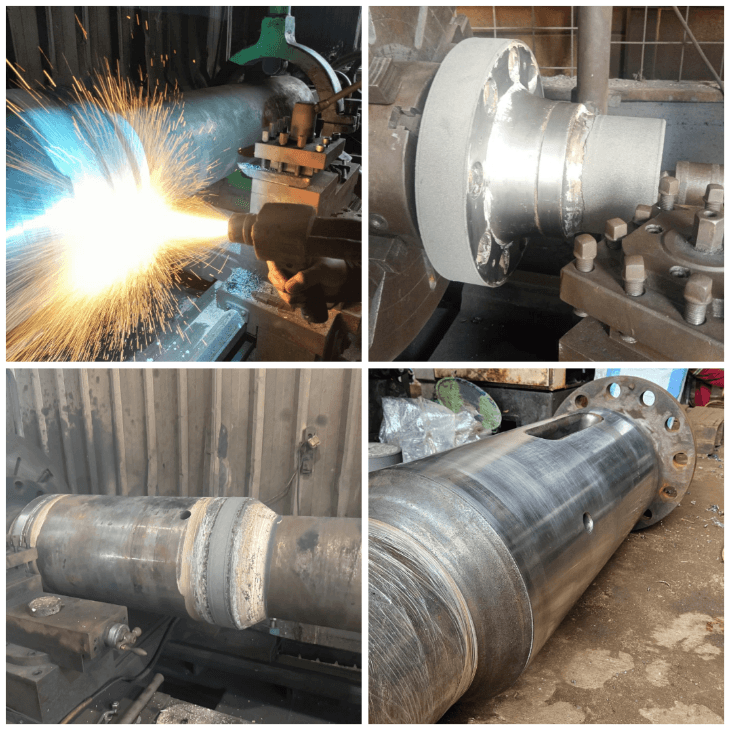

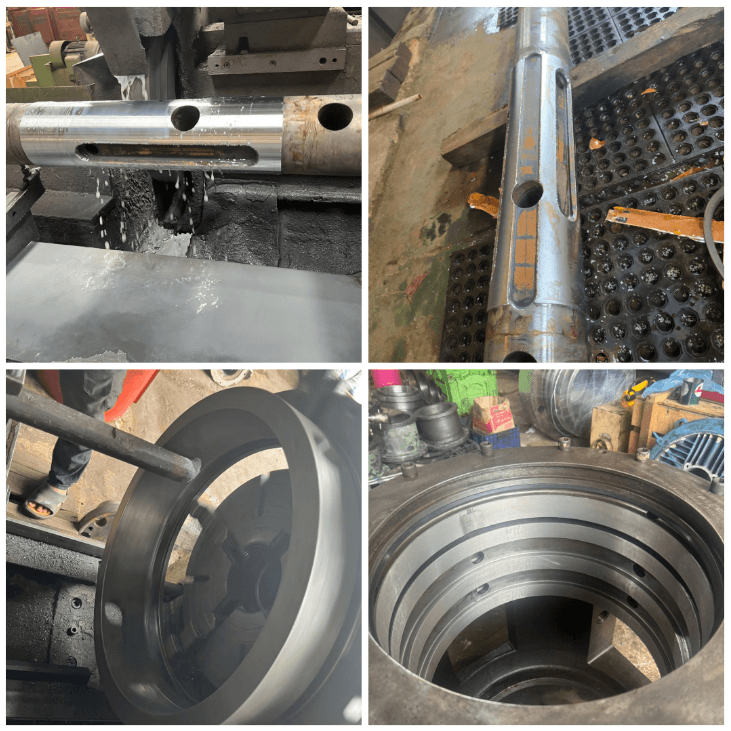

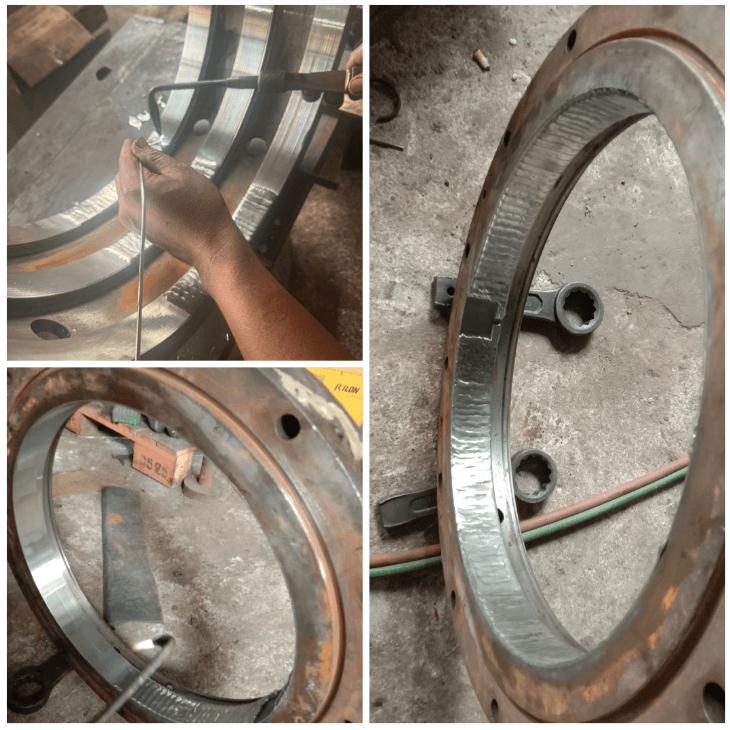

4. Component Reconditioning
- Machining of shaft or sleeve if required
- Surface polishing to reduce friction
- Replacement of seals, O-rings, and gaskets
- Repair or replacement of damaged components

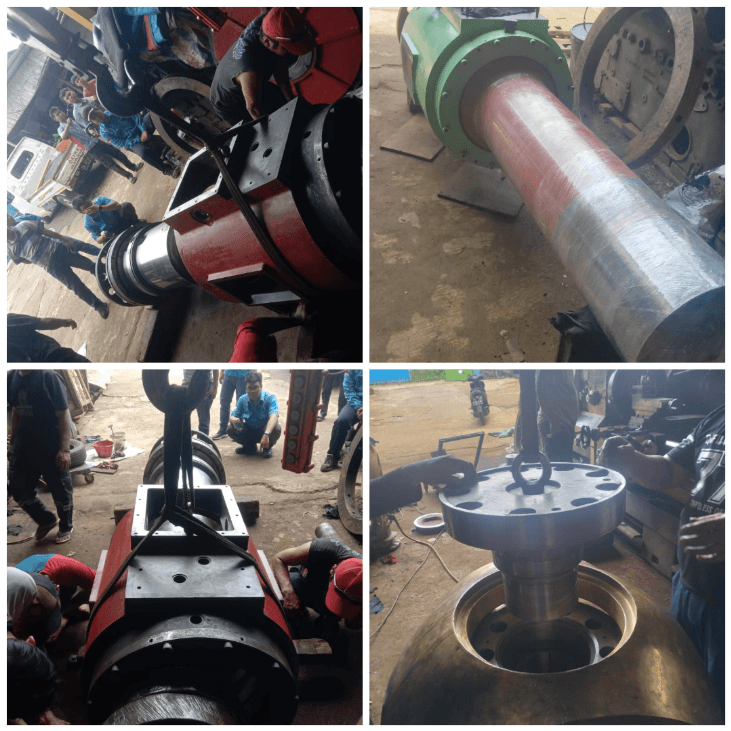

5. Reassembly (Assembly)
- Reinstallation of all OD Box components
- Use of new sealing materials as per specifications
- Bolt tightening using proper torque standards
- Alignment and clearance verification
6. Installation and Testing
- Reinstallation of OD Box into the CPP system
- Refilling with new hydraulic oil
- System bleeding to remove air
- Pressure testing and leak inspection
- Functional testing of propeller pitch response
Benefits of Reconditioning OD Box CPP (S)
Performing reconditioning on KMP. SALVATORE provides several key advantages:
- Restored CPP system performance
- Improved propeller pitch response
- Reduced risk of hydraulic oil leakage
- Extended service life of components
- Increased propulsion system reliability
- Lower maintenance costs compared to full replacement
Conclusion
Reconditioning OD Box CPP (S) on KMP. SALVATORE is a crucial maintenance activity to ensure optimal performance of the vessel’s propulsion system. Through proper dismantling, inspection, repair, reassembly, and testing, the OD Box can be restored to full operational capability.
This maintenance work is highly recommended as part of both preventive and corrective maintenance programs to maintain vessel efficiency, safety, and long-term reliability.
